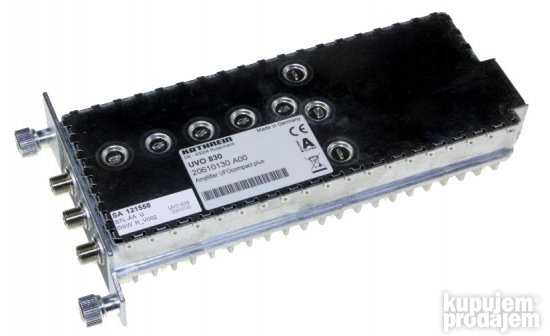

Pojačivač signala UVO 830 KATHREIN

Pojačivač signala, pojačalo UVO830 KATHREIN za UFG 810

Proizvođač:  KATHREIN
Oznaka:  20610130
Stanje: Novo
-----------------------------------
UFOcompact plus amplifier for UFG 810

The amplifier can be used directly in the UFOcompact PLUS® base unit UFG 810 (BN 20610122).
Level and slope can be set in combination (four suitable pre-emphases)
Test socket for uninterrupted measurement of the output channels on the UFOcompact plus® module carrier

Features

• Setting over central control module UFX 800 in conjunction with USW 800 software
• Level and slope can be set in combination (four suitable pre-emphases)
• Test socket for uninterrupted measurement of the output channels on the UFOcompact plus® module carrier
• Lightning arrester (1.2/50 μ s, 2 kV) on the output side
• Excellent dynamic range under high channel loading

Technical Data

Feature Unit Value
Input
Input socket 1 x F-type connector/75 Ohm
Frequency range MHz 47 . . . 1,006

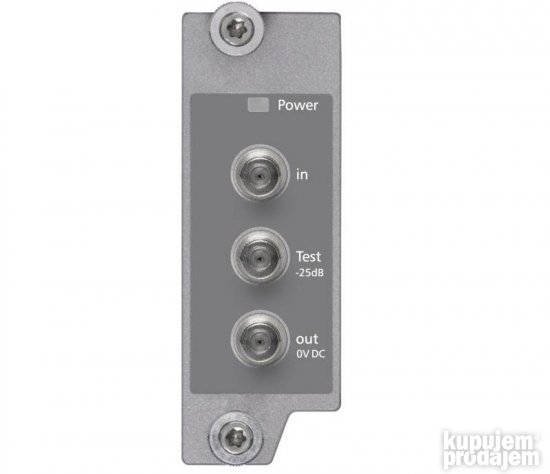

Test output
Test socket 1 x F-type connector/75 Ohm
Level relative to output dB -25
Output
Output socket 1 x F-type connector/75 Ohm
Max. output level (at 862 MHz) dBµ V 113
Max. output level (at 1006 MHz) dBµ V 112
System data
Gain dB max. 30
Adjustable Pre Emphasis dB 6, 9, 12, 15
Power consumption W Typ. 14.2
Temperature range ° C -20 . . . +50
Dimensions (H x W x D) mm 110.5 x 38.5 x 207
Weight kg 0.3
VPE 1 1
EAN 1 4021121517822
VPE 2 10
EAN 2 4021121517839
Customs tariff number 85437030

Mogu da nabavim i drugu KATHREIN opremu
